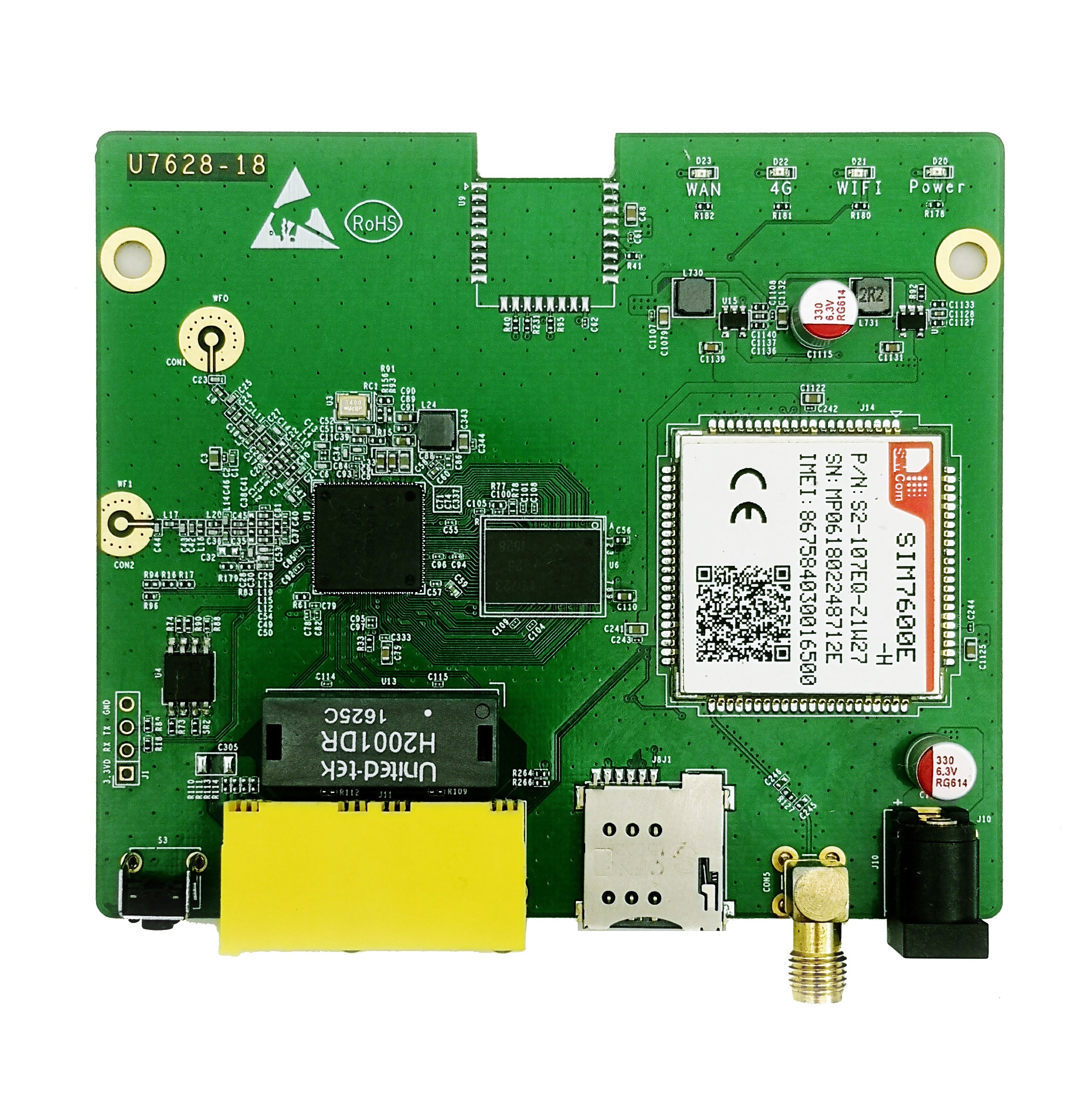

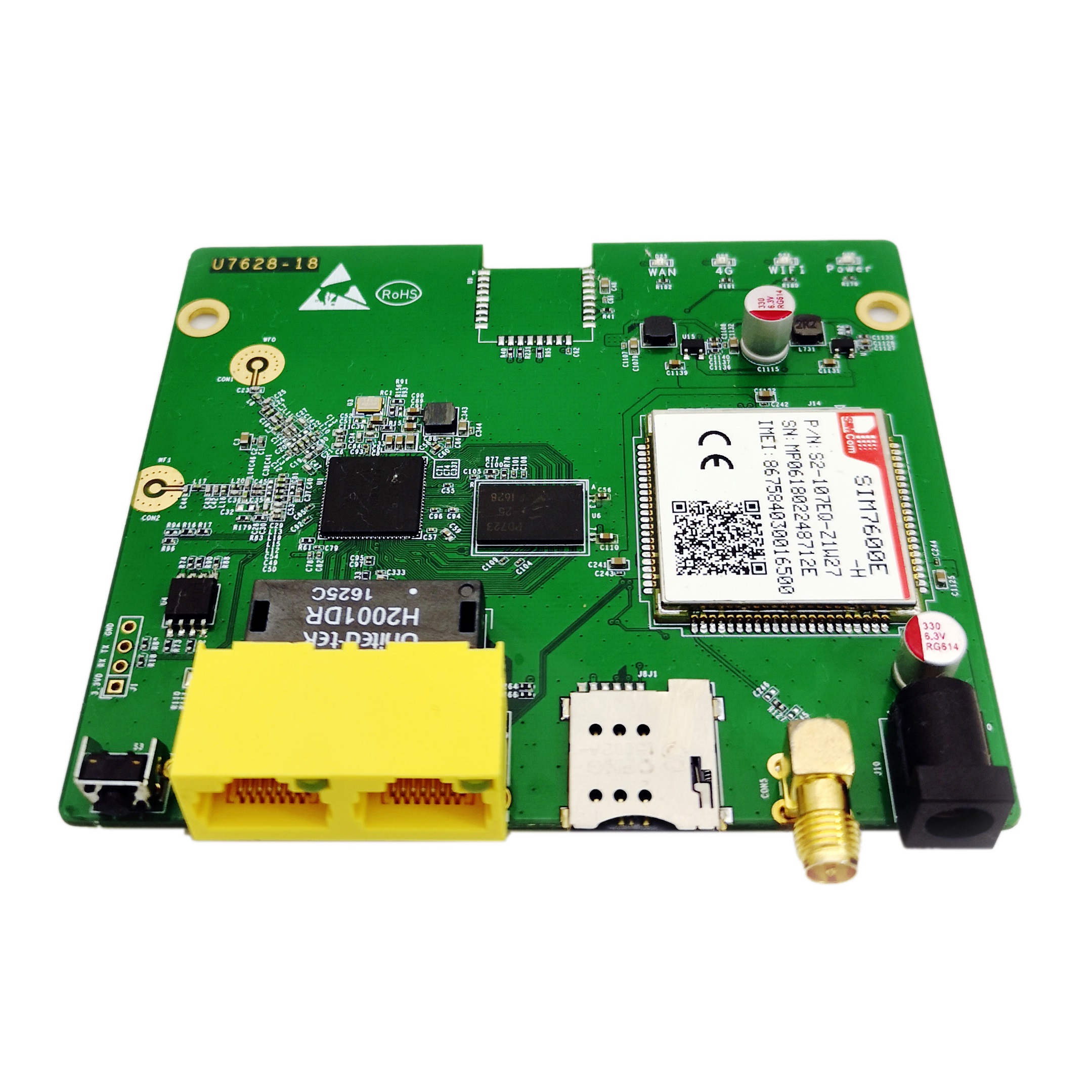

Wireless Router with One Sim 4G Module_U7628-18

Highlight Features

  • MIPS24KEc (575/580 MHz) with 64 KB I-Cache and 32 KB D-Cache
  • Optional LTE  application
  • Support latest OpenWrt
  • Low Cost

Contact us for the stock and customized requirements!

Product Details:


Chipset CPU: MTK MT7628N
System Memory Default DDR2 128Mbyte (Optional 64/256 Mbyte)
Nor Flash Default 8Mbyte (Optional 16Mbyte)

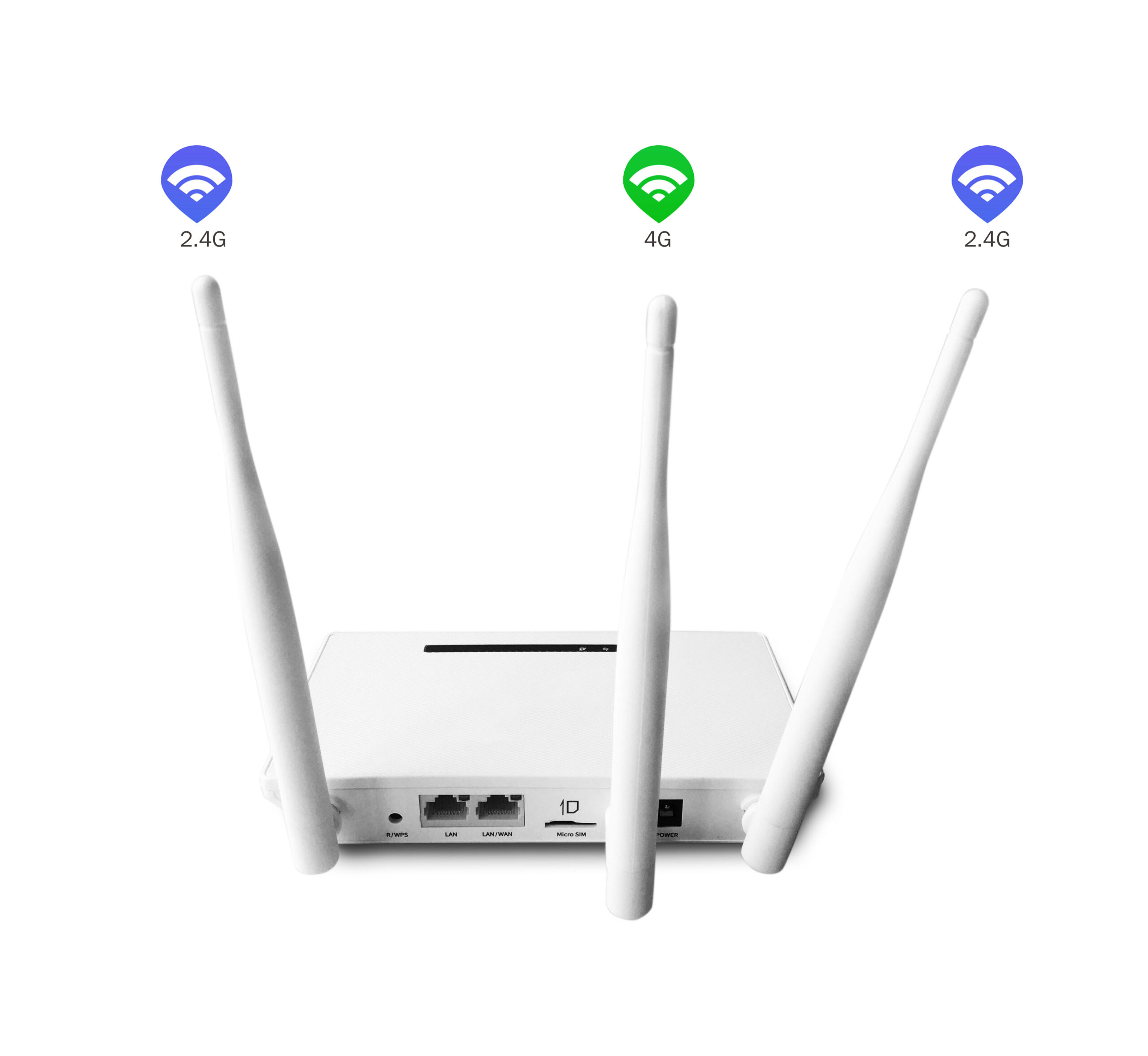

Expansion 1x 4G/3G Module with a Micro SIM card

1x SMA Jack Connector

1x Micro SIM Card Slot

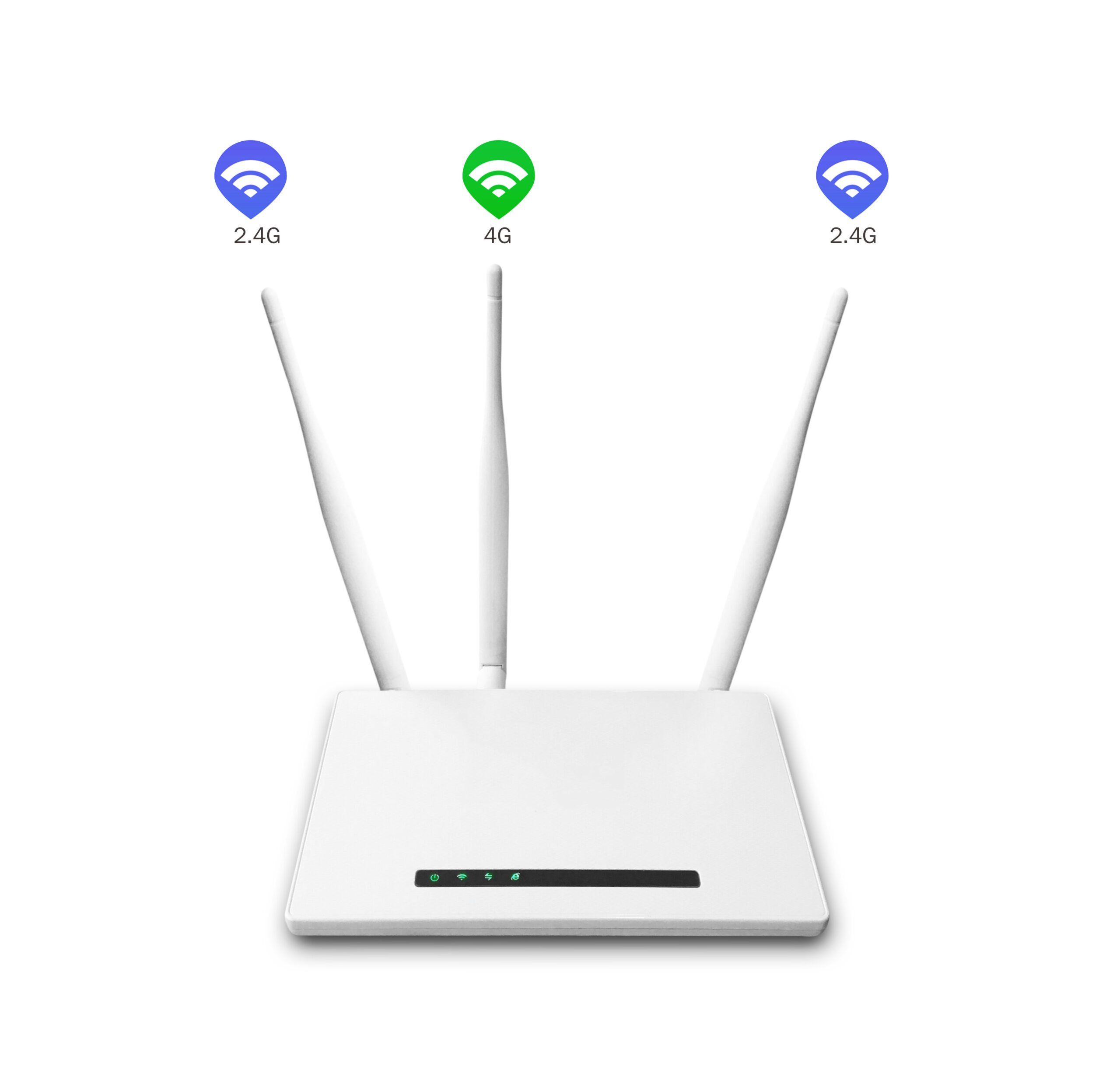

Wireless  2.4G 2T2R 300Mbps, B mode@19dBm(Max)
Wired Interface 2x 100Mbps 1*WAN+1*LAN
Reset Button 1x Factory Restore Button (GPIO)
DC Power 1x DC Jack Connector (Default 12V@1A)
Power Consumption 12W(Max),12V@1A without Expansion
Software MTK OpenWrt which includes Uboot, Kernel, Driver and Tool Chain

Normal OpenWrt

Environmental Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC

Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%

Case Material: Plastic, Dimensions: 170x100x30mm

MT7628 Block Diagram


Board Block Diagram

Customization Options

Uiotin have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at sales@uiotin.com for more

detailed info.

Name Customization Comments Uiotin Customization
Memory Change to 64/256 Mbyte DDR2 Supported
Nor Flash Change to 16Mbyte Supported
LTE/3G Module Select the right LCC LTE/3G module for your application Supported
Case Select the different case material for your application Supported

Ordering Information

Models Comments
U7628-18 8Mbyte Nor Flash and 128Mbyte DDR2 RAM
