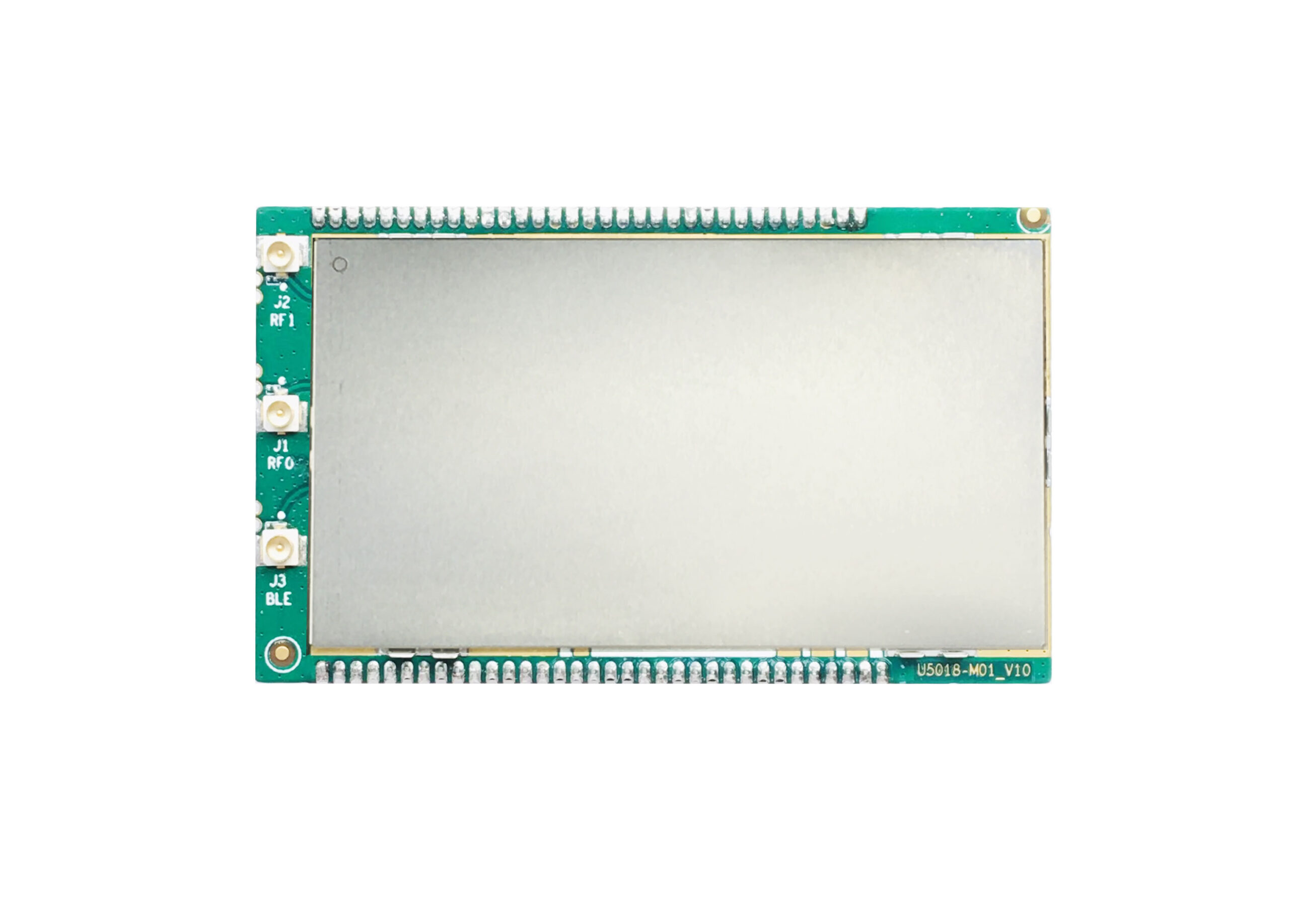

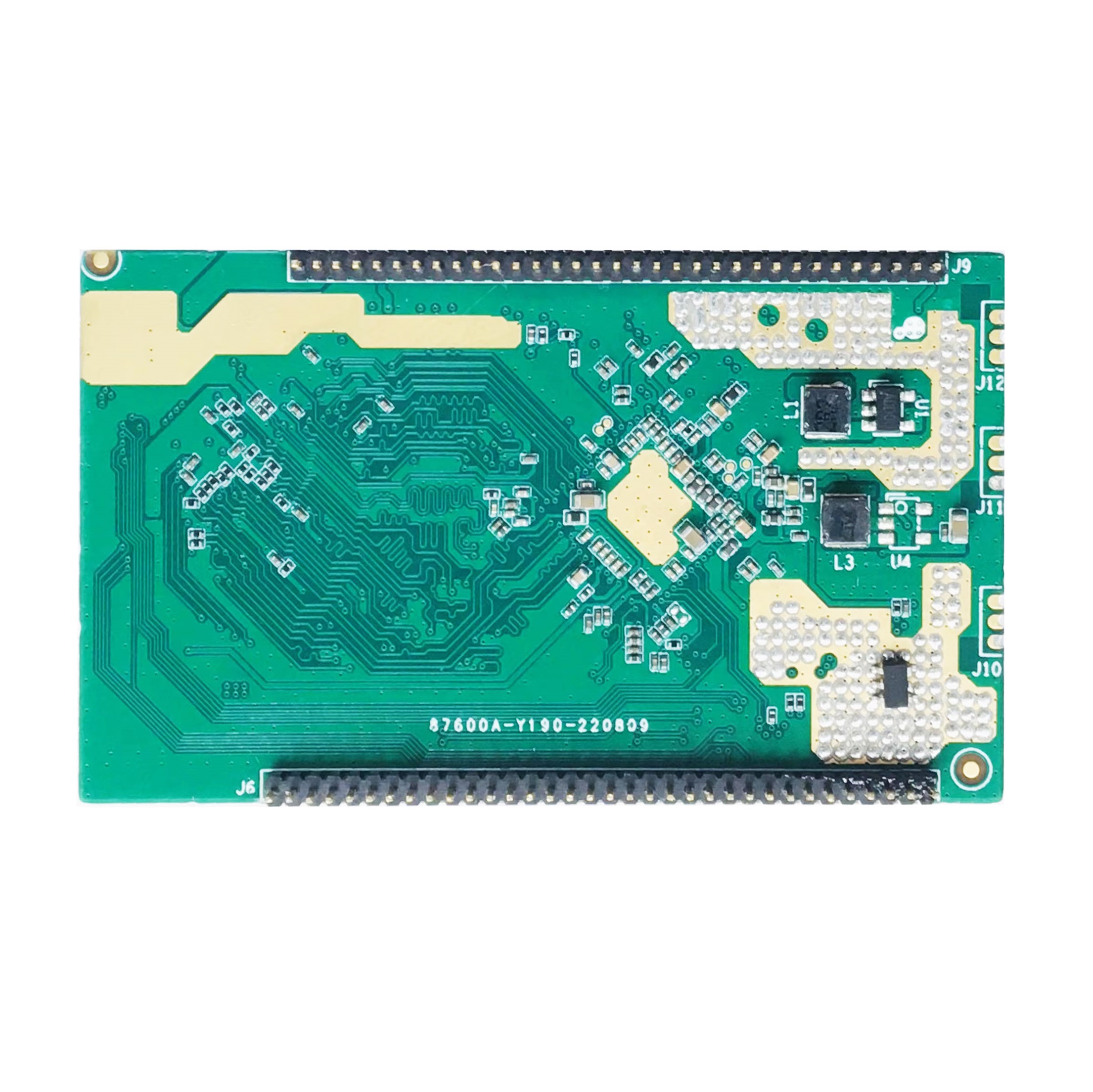

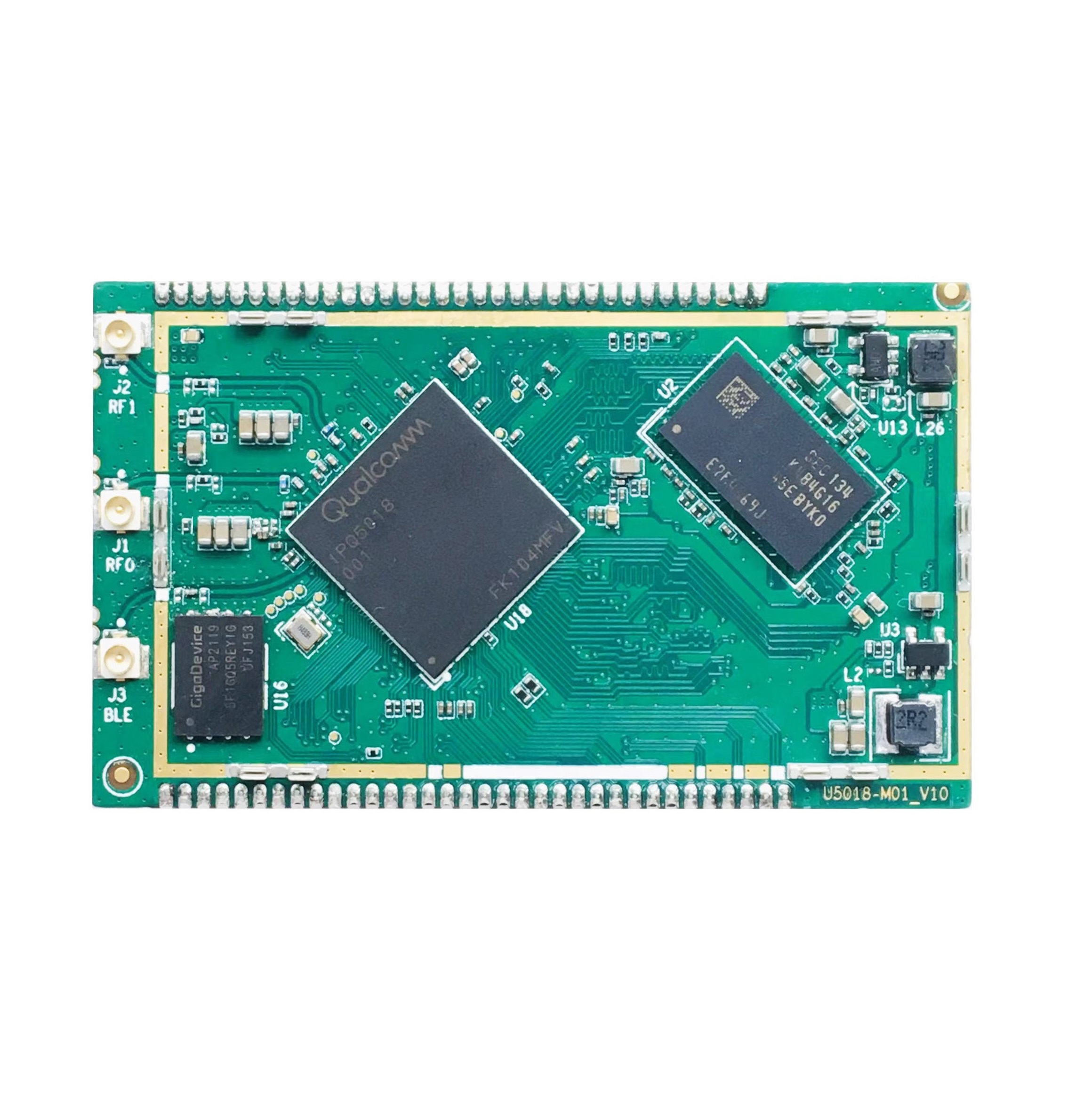

Wi-Fi 2.4G 2x2 11AX Module_U5018-M01

分类

Highlight Features

  • Dual-core ARM Cortex-A53 at 1.0 GHz
  • Bluetooth. Compliant with BT 5.1 to support BR/EDR and BLE dual mode
  • Low Cost
  • Support SMT and DIP mounting both
  • Rich expansion interface for different application
  • Support customized hardware and software design

Contact us for the stock and customized requirements!

Product Details:

Specifications

Chipset CPU: Qualcomm IPQ5018
System Memory Default DDR3 512Mbyte (Optional 256Mbyte/1Gbyte)
SPI NAND Flash Default 128Mbyte (Optional 256Mbyte)
Expansion 1 x PCIe 2.0×2

1 x PCIe 2.0+USB2.0 or 1x USB3.0

1x 2.5G SGMII

1x 1000M Ethernet MDI

2.4G 2T2R 802.11B/G/N/AX 576Mbps, B mode@20dBm(Max)

BT 5.1 1T1R

Software Qualcomm QSDK

Latest Openwrt (In Development)

Environmental Temperature: Operating: -10ºC to 65ºC, Storage: -20ºC to 85ºC

Humidity (non-condensing): Operating: 10% to 98%, Storage: Max. 95%

Dimensions L*W*H = 59.8*35.3*4.6mm(±0.2mm)

IPQ5018 Block Diagram

Board Block Diagram

Customization Options

Uiotin have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at sales@uiotin.com for more

detailed info.

Name Customization Comments Uiotin Customization
Memory Change to 256Mbyte/1Gbyte Supported
SPI NAND Flash Change to 256Mbyte Supported

Ordering Information

Models Comments
U5018-M01 128Mbyte SPI NAND Flash and 512Mbyte DDR3 RAM
