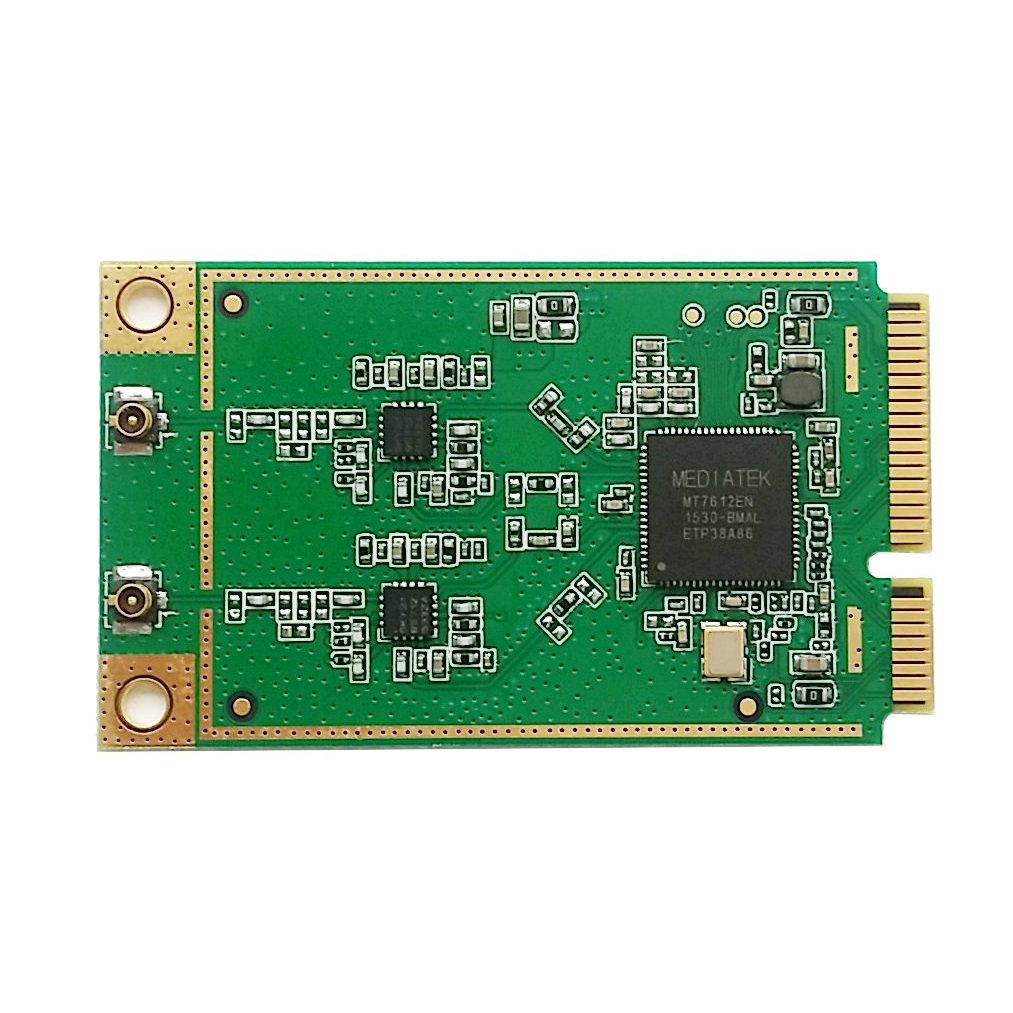

MT7612E 5.8G Wi-Fi Module_U7612E-F1

分类

Highlight Features

  • Embedded high-performance 32-bit RISC microprocessor
  • High throughput application
  • Low Cost

Contact us for the stock and customized requirements!

Product Details:

Specifications

Chipset CPU: MTK MT7612E External PA/LNA/SWITCH SKY85712-21
Expansion Normal Gold Finger MINIPCIE
Wireless 5.8GHz 2T2R 867Mbps 11ac, A mode @21dBm (Max)
DC Power 1x DC MINIPCIE Connector: 3.3V@1A 5V@1A
Power Consumption 3 Watt (Max)
Software OpenWRT or MTK Linux SDK Driver and Tool Chain
Environmental Temperature: Operating: 0ºC to 55 ºC, Storage: -20ºC to 90ºC

Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 90%

Dimensions L*W*H = 51*30*2.34mm(±0.2mm)

MT7612E Block Diagram

Customization Options

Uiotin have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at sales@uiotin.com for more

detailed info.

Name Customization Comments Uiotin Customization
RF TX Power Change TX POWER as the requirement from 21-25dBm Supported

Ordering Information

Models Comments
U7612E-F1 WIFI 5.8G 2×2 11AC

we are Manufacturer & Network Solution Supplier

Uiotin is supplying custom services for OEM/ODM products.

 we can customized total production including the chassis, hardware, software and  the mass prodcution ones.

For further cooperation please send email to sales@unielecinc.com, thanks!
