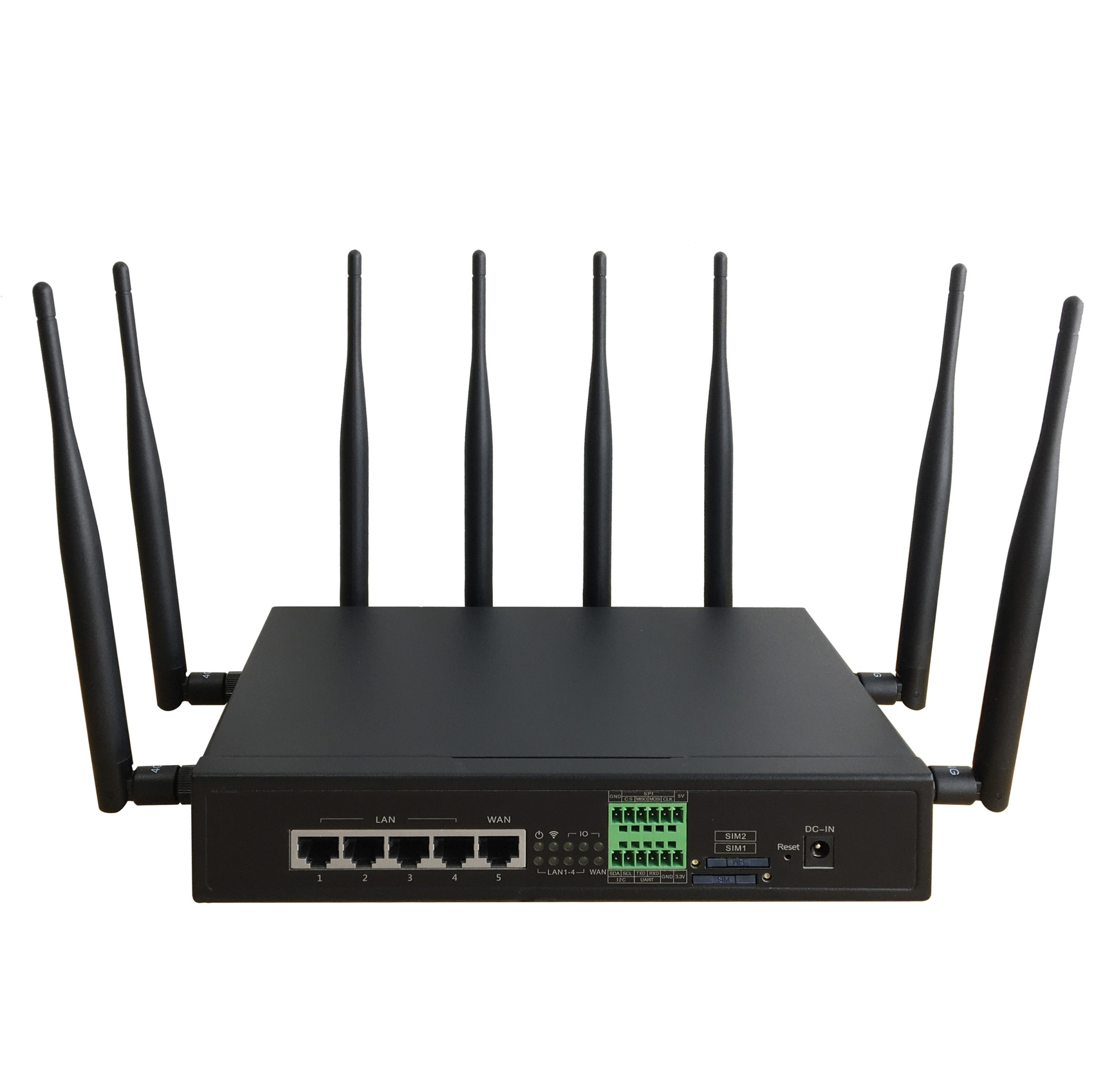

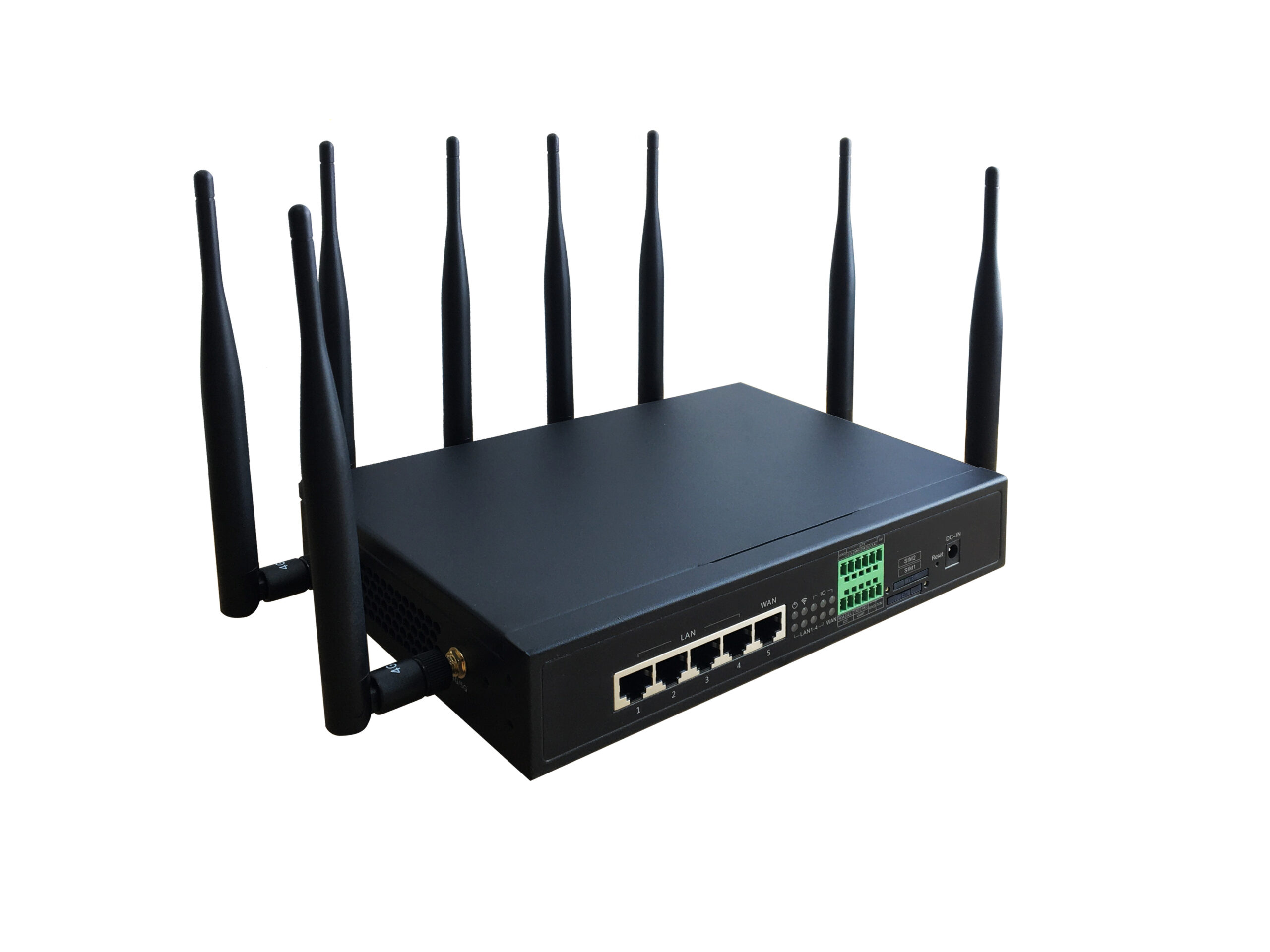

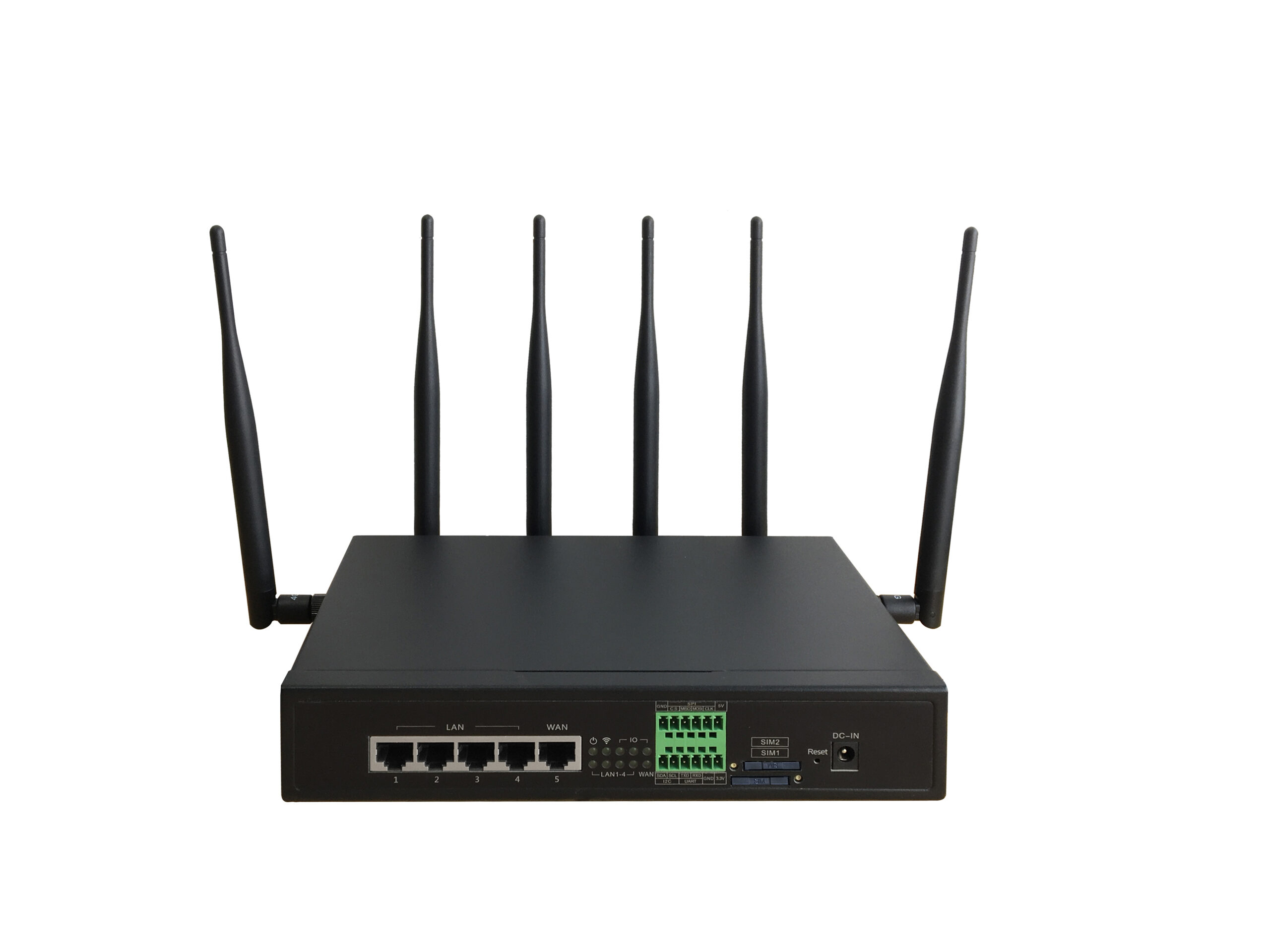

Dual Sim Dual 4G/5G Module Wi-Fi Router_U7622-02

Highlight Features

  • Dual-core ARM® Cortex-A53 MPCoreTM (1.35GHz)
  • Optional Nor Flash for low cost and EMMC for mass storage application
  • Support latest Openwrt
  • Industry iron case with removable SMA antennas
  • Flexible usage:
  1. Dual M.2 LTE/5G module with one SIM each
  2. One M.2 LTE/5G module with two SIM
  • External 1x RS485/RS232/GPIO connector

Contact us for the stock and customized requirements!

Product Details:

Specifications

Chipset CPU: MTK MT7622 ARM CA53 (1.35GHz, Dual-core)

RTL8367S 5-Ports 100/1000Mbps Switch Chip

System Memory Default DDR3 512Mbyte (Optional 256Mbyte/1Gbyte)
Nor Flash

EMMC

Default 16Mbyte (Optional 8/32/64Mbyte)

Optional 8Gbyte EMMC

Expansion 2x M.2 LTE/5G Module with a SIM card

1x MINIPCIE for WIFI or other application

1x SATA3.0 connector

1x RS485/RS232/GPIO connector

1x TF Card Slot

Wireless  2.4GHz 4T4R 574Mbps, B mode@21dBm(Max)
Wired Interface 5x Gigabit 1WAN+4*LAN
Reset Button 1x Factory Restore Button (GPIO)
DC Power 1x DC Jack Connector (Default 12V@1A)
Power Consumption 10W(Max),12V@1A without Expansion

24W(Max), 12V@2A in full range for 1x LTE/5G module

34W(Max), 12V@3A in full range for 2x LTE/5G module

Software MTK OpenWrt which includes Uboot, Kernel, Driver and Tool Chain

Normal OpenWrt

Environmental Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC

Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%

Case Material: Iron, Dimensions: 230x149x42.82mm

MT7622 Block Diagram

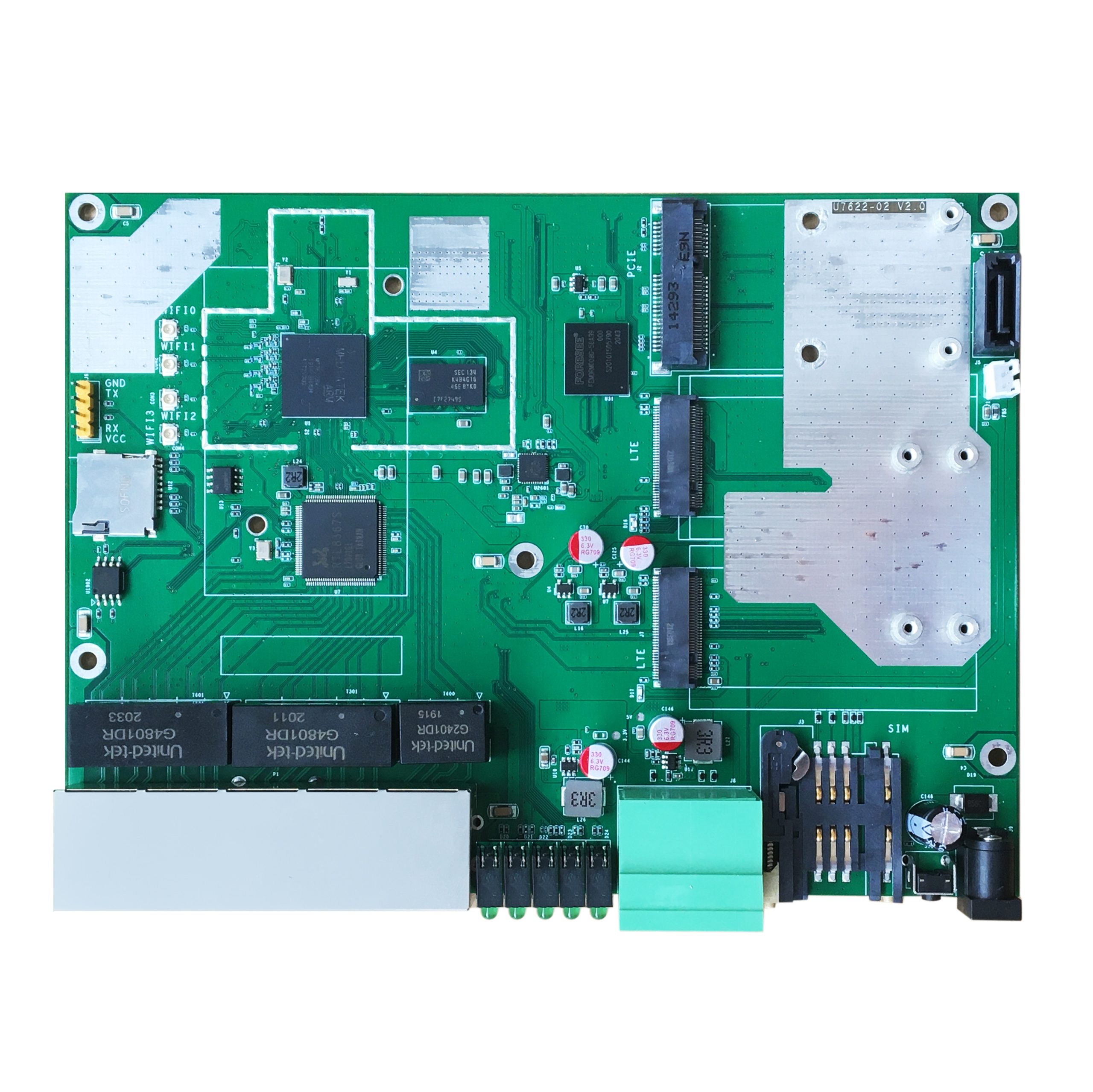

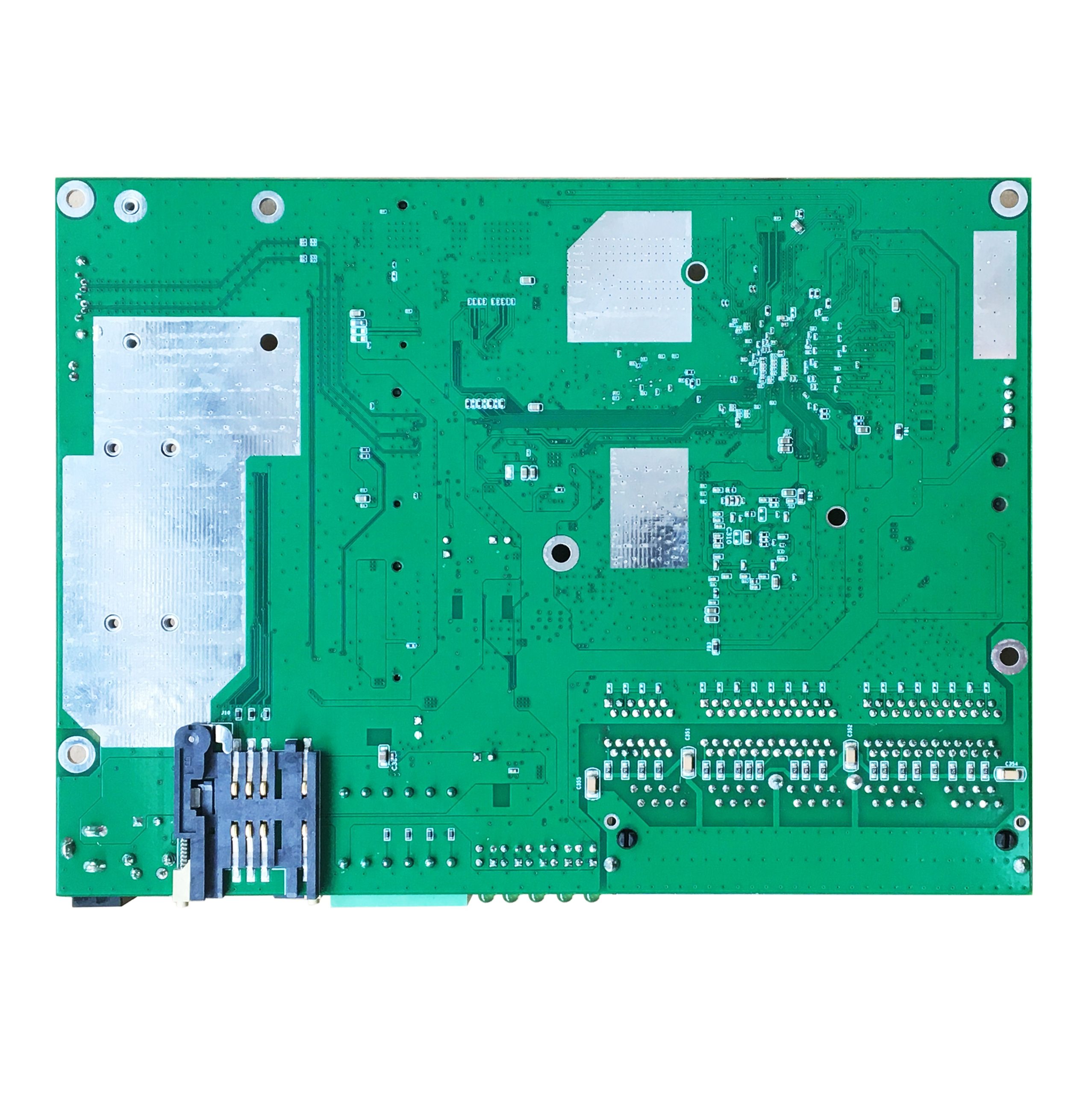

Board Block Diagram





Customization Options

Uiotin have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at sales@uiotin.com for more

detailed info.

Name Customization Comments Uiotin Customization
Memory Change to 256Mbyte/1Gbyte DDR3 Supported
Nor Flash/EMMC Change to 8/32/64Mbyte Nor Flash or 8Gbyte EMMC Supported
LTE/5G Module Select the right M2 LTE/5G module for your application Supported
Case Select the different case material for your application Supported

Ordering Information

Models Comments
U7622-02 16Mbyte Nor Flash and 512Mbyte DDR3 RAM
