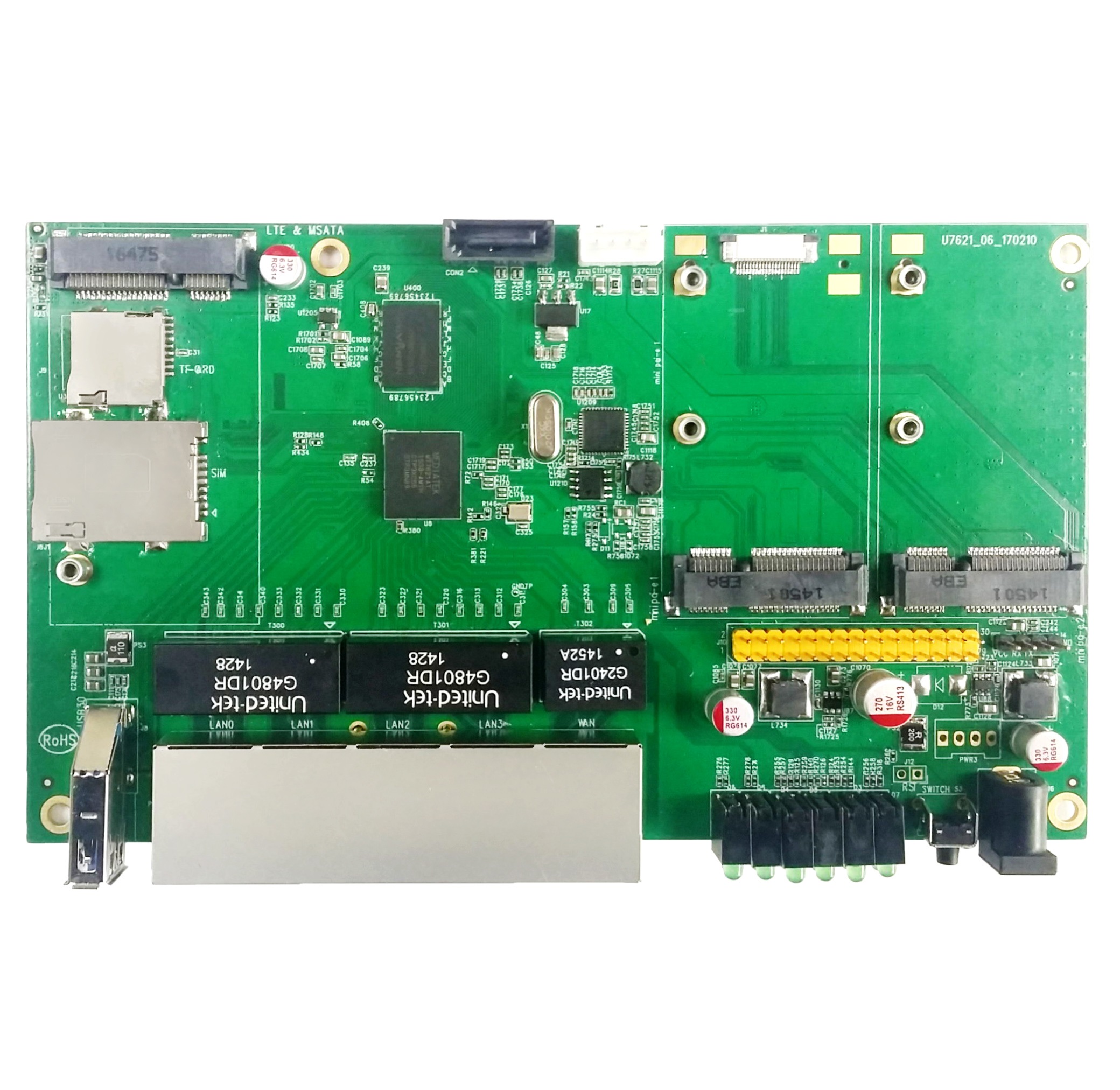

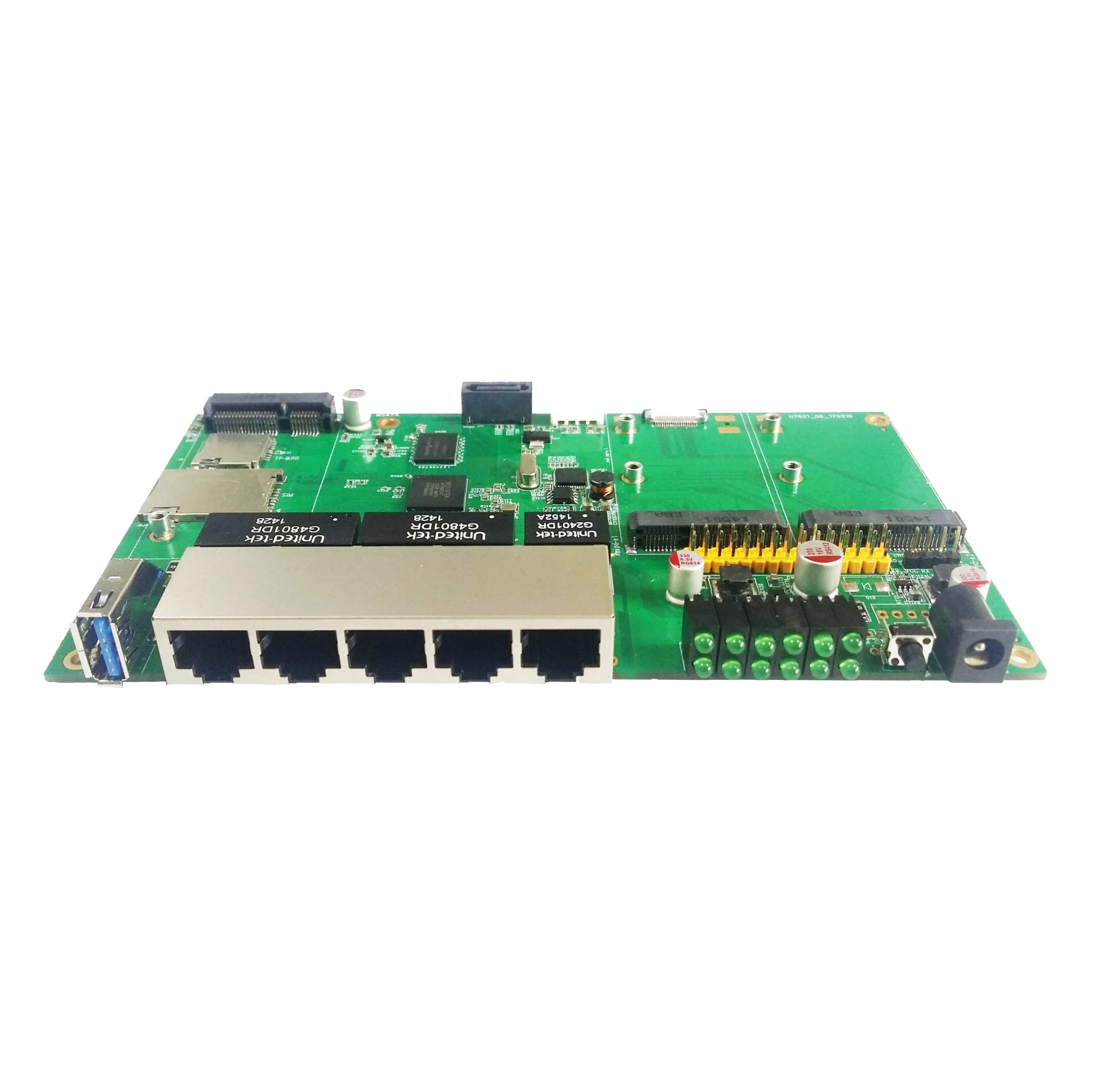

Dual Band Gigabit Wi-Fi Router with One Sim 4G Module_U7621-06

Highlight Features

  • Dual-core MIPS1004K(880MHz)
  • Optional LTE  application
  • Low Cost
  • Industry iron case with removable SMA antennas
  • Support latest OpenWrt

Contact us for the stock and customized requirements!

Product Details:

Specifications

Chipset CPU: MTK MT7621A dual-core MIPS1004K (880MHz)
System Memory Default DDR3 256Mbyte (Optional 512Mbyte)
Nor Flash Default 16Mbyte (Optional for 8/32/64Mbyte)
PCIE 2x MiniPCIE for 11AC or 11N WIFI module

1x MiniPCIE connector for LTE or MSATA module

Expansion 1x 30 Pin GPIO expand Connector1

1x Serial Debug Port 4 Pin Connector1

1x USB3.0 connector

1x SATA3.0 connector

1x TF Card Slot

Wired Interface 5x Gigabit 1*WAN((Auto MDI-X)+4*LAN
Reset Button 1x Factory Restore Button (GPIO)
DC Power 1x DC Jack Connector (Default 12V@1A)
Power Consumption 9.5 W(Max),12V@1A without Expansion

24W(Max), 12V@2A in full range

Software MTK OpenWrt which includes Uboot, Kernel, Driver and Tool Chain

Normal OpenWrt

Environmental Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC

Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%

Case Material: Aluminum Alloy, Dimensions: 189x129x25 mm

MT7621 Block Diagram



Board Block Diagram

Customization Options

Uiotin have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at sales@uiotin.com for more

detailed info.

Name Customization Comments Uiotin Customization
Memory Change to 512Mbyte DDR3 Supported
Nor Flash Change to 8/32/64Mbyte Supported
4G Module Select the right PCIE 4G module

for your application

Supported
WIFI Module Select the right MiniPCIE

WIFI module for your application

2T2R 11ac module [Half Card ]: U7612E-H1 2T2R 11n module Half Card]: U7603E-H1 4T4R 11ac Wave2 [Large Card]: U7615N-L3

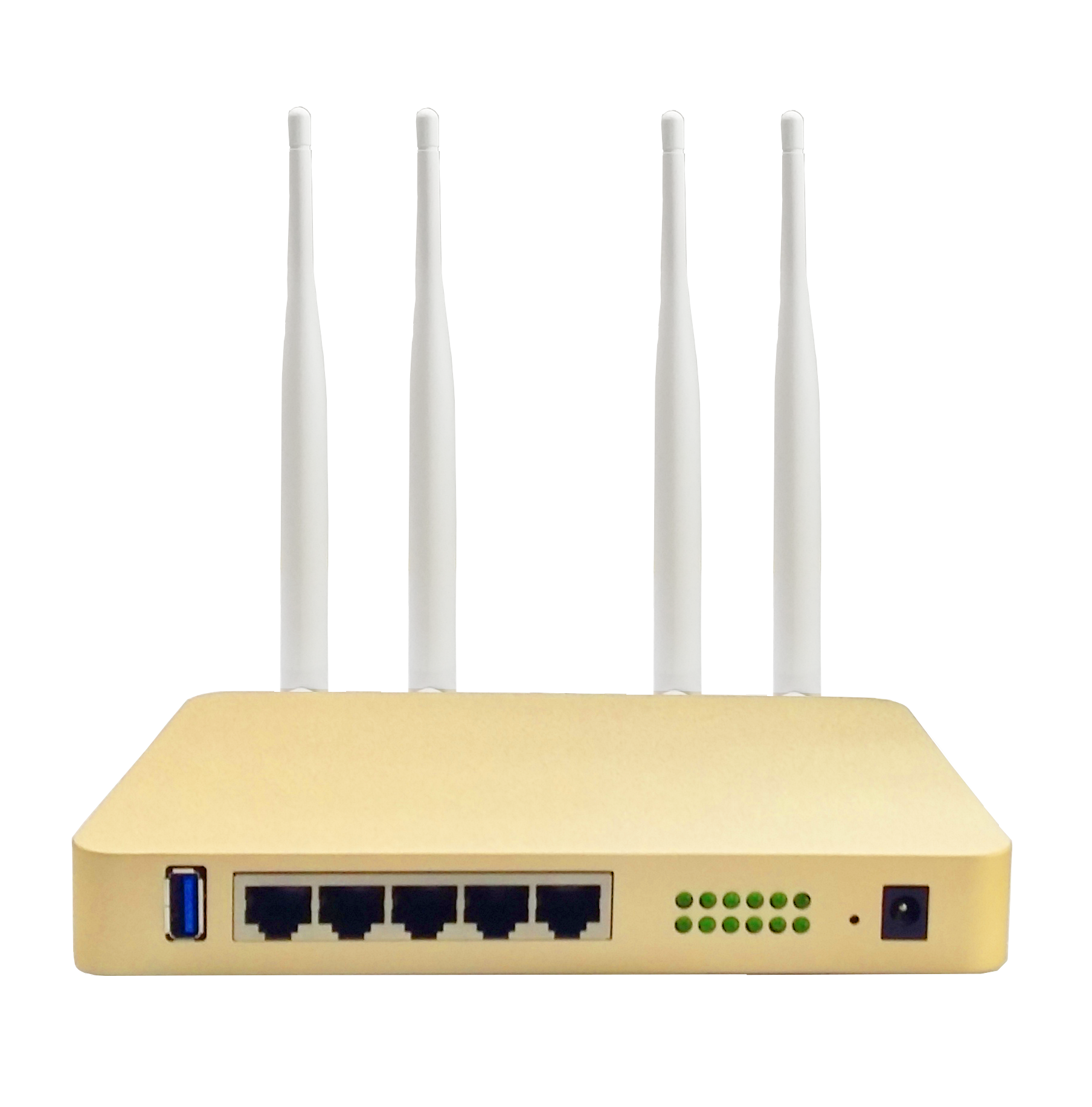

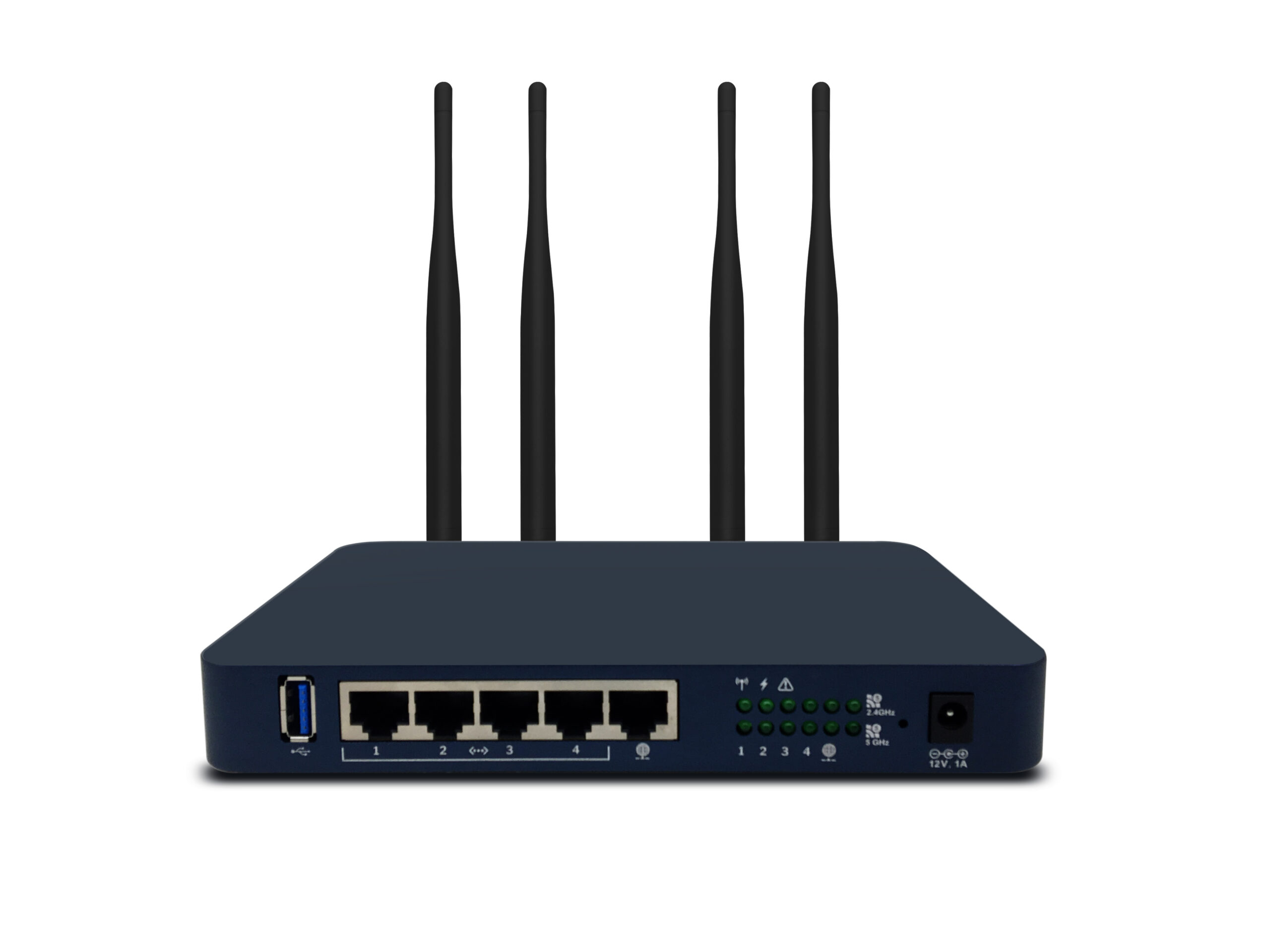

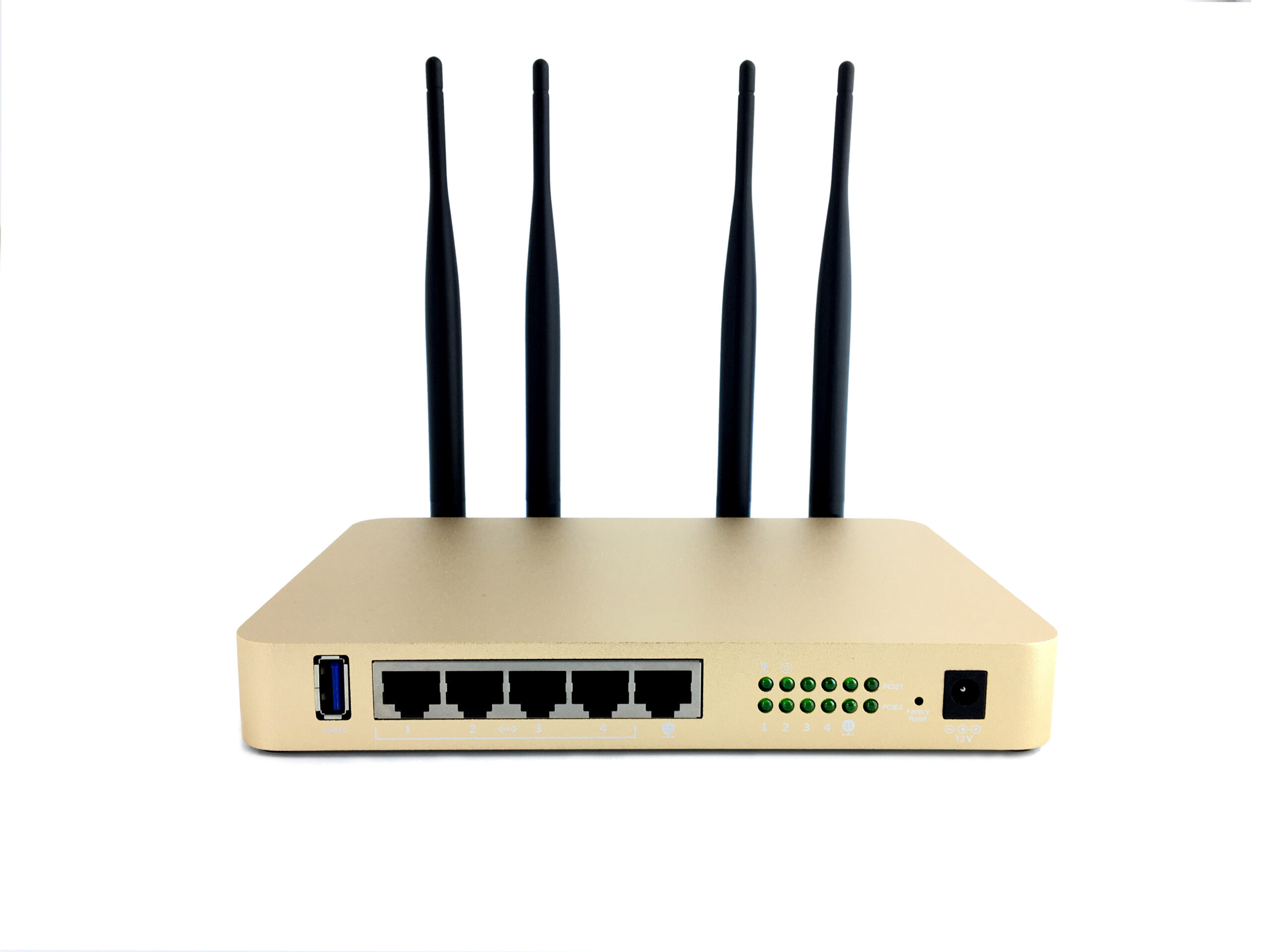

Case Select the different case material for your application Supported

Ordering Information

Models Comments
U7621-06 16Mbyte Nor Flash and 256Mbyte DDR3 RAM
