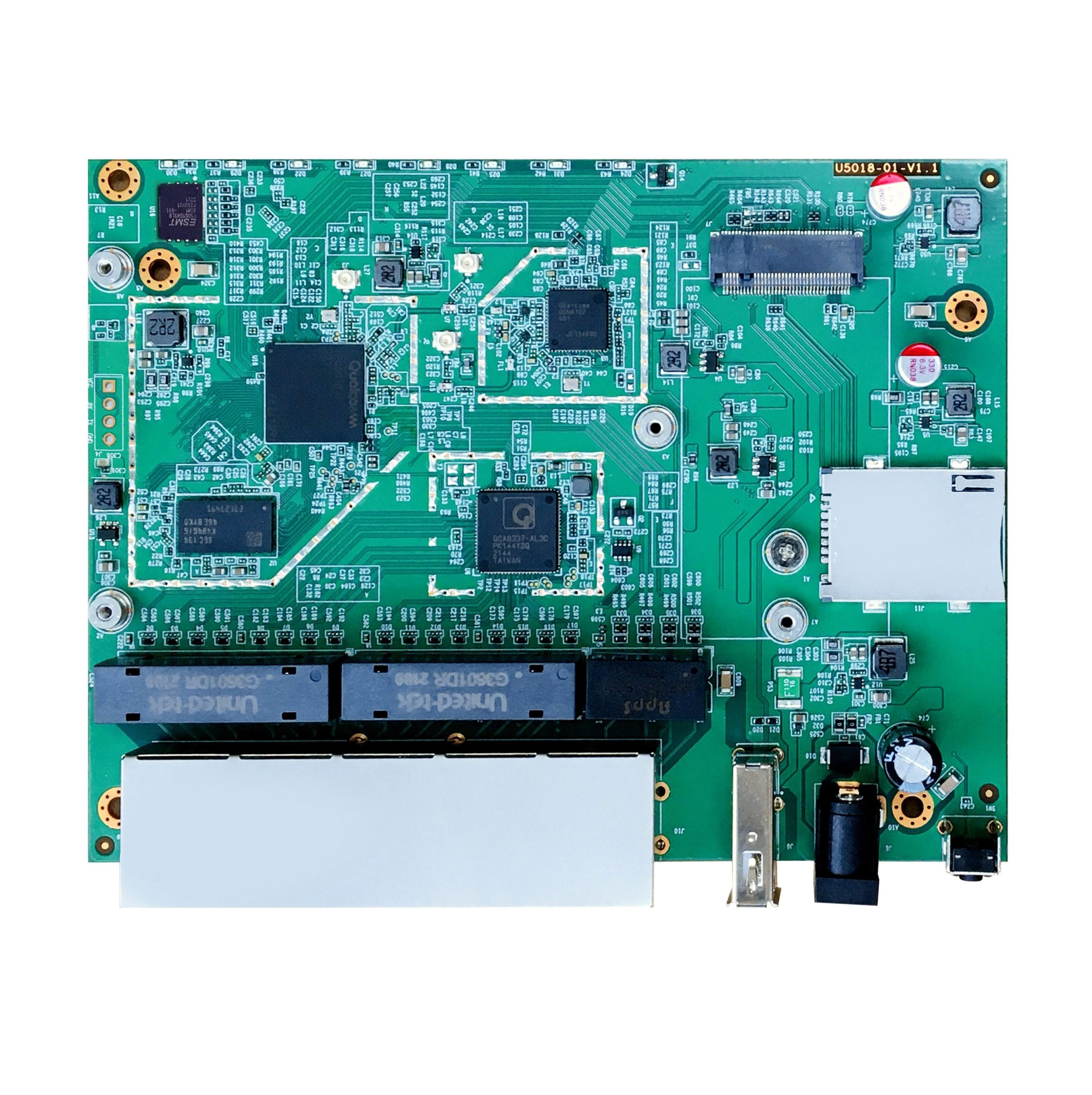

AX3000 Dual Band Gigabit Wi-Fi 6 Router_U5018-01

Highlight Features

  • Dual-core ARM Cortex-A53 at 1.0 GHz
  • Bluetooth. Compliant with BT 5.1 to support BR/EDR and BLE dual mode
  • Optional LTE /5G application
  • Low Cost WIFI6 AX3000 platform
  • Optional Support for EMMC/SPI NAND

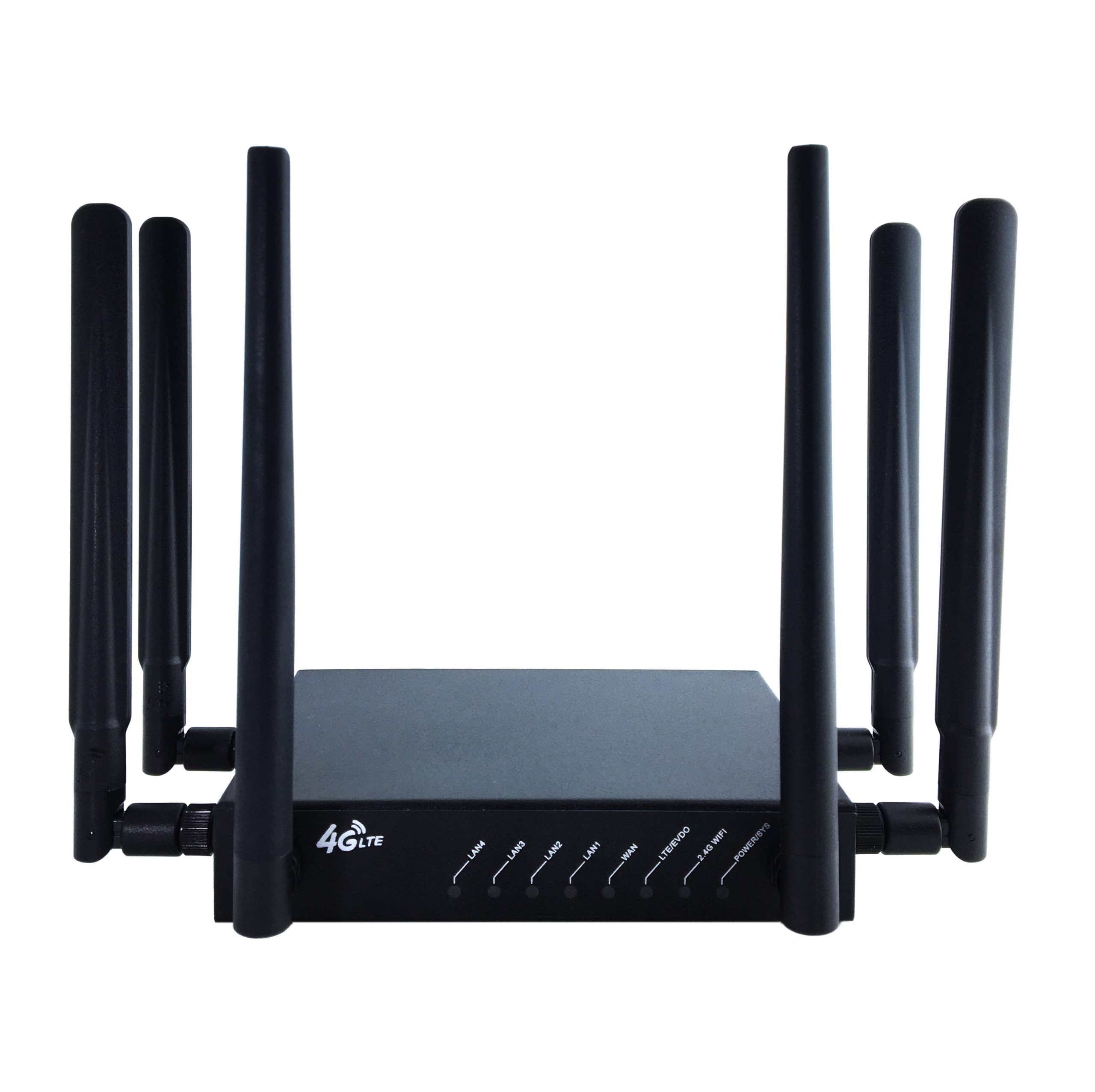

  • Industry iron case with removable SMA antennas

Contact us for the stock and customized requirements!

Product Details:

Specifications

Chipset CPU: Qualcomm IPQ5018 and Qualcomm QCN6102 and QCA8337N
System Memory Default DDR3 512Mbyte (Optional 256Mbyte/1Gbyte)
EMMC/NAND Flash Default 128Mbyte NAND (Optional 256Mbyte)

Optional EMMC( 8~128Gbyte)

Expansion 1x 4G/5G Module with a SIM card

1x USB TYPEA connector for power only

Wireless 2×2 MU-MIMO 802.11b/g/n/ac/ax WiFi 6

2.4GHz 2T2R 576Mbps, B mode@22dBm(Max)

5.8GHz 2T2R 2.4Gbps, A mode@19dBm(Max)

Wired Interface 5x Gigabit 1*WAN+4*LAN
Reset Button 1x Factory Restore Button (GPIO)
DC Power 1x DC Jack Connector (Default 12V@1A)
Power Consumption 9.5 W(Max),12V@1A without Expansion

24W(Max), 12V@2A in full range

Software Qualcomm QSDK which includes Uboot, Kernel, Driver and Tool Chain

Latest Openwrt (In Development)

Environmental Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC

Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%

Case Material: Iron, Dimensions: 155x111x30mm

IPQ5018 Block Diagram



Board Block Diagram

Customization Options

Uiotin have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at sales@uiotin.com for more detailed info.

Name Customization Comments Uiotin Customization
Memory Change to 256Mbyte/1Gbyte DDR3 Supported
NAND Flash/EMMC Change to 256Mbyte NAND/8~128Gbyte EMMC Supported
4G/5G Module Select the right M2 4G/5G module for your application Supported
Case Select the different case material for your application Supported

Ordering Information

Models Comments
U5018-01 128Mbyte NAND Flash and 512Mbyte DDR3 RAM
